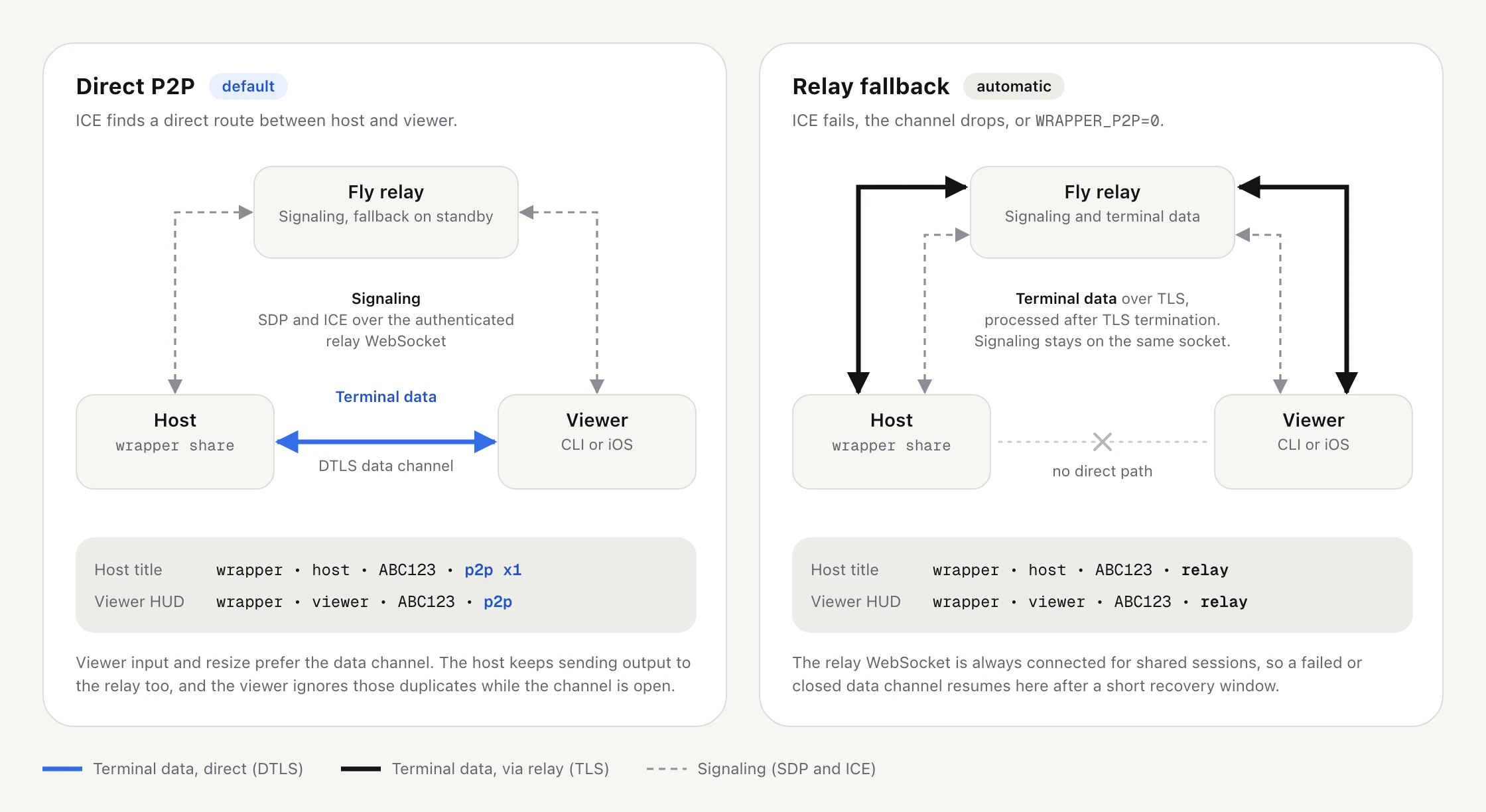

Transport interface:
- WebRTC data channel: default direct path for lower latency
- Relay WebSocket: always connected for shared sessions; carries signaling and becomes the data path when direct connection is unavailable
127.0.0.1 attach is already direct and does not use these remote paths.
Why a direct path
WebRTC removes the relay hop for interactive latency. STUN and ICE attempt the peer connection. Failure leaves the working relay path in place. Public STUN servers used today:stun.l.google.com:19302global.stun.twilio.com:3478
Negotiation flow
The viewer creates the offer and the host answers. SDP and ICE travel on the authenticated relay connection, so there is no separate signaling service.Data path once P2P is up
- The host fans output to relay and to each direct viewer.
- The viewer prefers the data channel for input and resize.
- Once its channel is open, the viewer ignores duplicate relay output frames.
- A failed or disconnected data channel resumes through the relay after a short recovery window.
- If the signaling WebSocket dies after P2P is up, the data channel can continue until it also fails.
- If both paths close, attach ends.
Security properties
- WebRTC data channels are DTLS-encrypted between peers.
- Relay fallback is TLS-encrypted in transit but processed after TLS termination.
- Signaling requires relay ticket authorization. A session id alone is not enough.
- A direct connection exposes each peer’s IP to the other, and STUN discloses your public IP to the STUN provider.
Defaults and opt-out
WRAPPER_P2P is on by default. Opt out on either end:
wss://wrapper-relay-prod.fly.devDevelopment default:
ws://localhost:8080
HUD labels: local, connecting, relay, p2p, offline.
See Troubleshooting when a remote session remains on relay.
